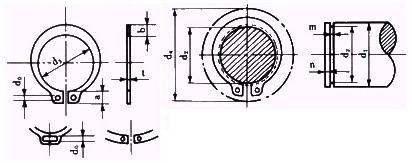

| 호칭번호 |
멈춤링 |
적용하는 축(참조) |
| d3 |
t |
b |
a |
d |
d3 |
d1 |
d2 |
m |
n |
| STW- |
기준
치수 |
기준
치수 |
약 |
약 |
최소 |
기준
치수 |
기준
치수 |
최소 |
| STW-3* |
2.7 |
0.25 |
0.5 |
1.7 |
0.7 |
7 |
3 |
2.85 |
0.35 |
0.3 |
| STW-4* |
3.7 |
0.4 |
0.9 |
2.2 |
0.8 |
9 |
4 |
3.8 |
0.5 |
| STW-5* |
4.7 |
0.6 |
1.1 |
2.4 |
10.5 |
5 |
4.8 |
0.7 |
| STW-6* |
5.6 |
0.7 |
1.3 |
2.8 |
1 |
12 |
6 |
5.7 |
0.8 |
0.5 |
| STW-7* |
6.5 |
0.8 |
1.4 |
3 |
14 |
7 |
6.7 |
0.9 |
| STW-8* |
7.4 |
1.6 |
3 |
15 |
8 |
7.6 |
0.6 |
| STW-9* |
8.4 |
1 |
1.8 |
3.2 |
16 |
9 |
8.6 |
1.15 |
| STW-10 |
9.3 |
1 |
1.6 |
3 |
1.2 |
17 |
10 |
09.6 |
1.5 |
| STW-11 |
10.2 |
1.8 |
3.1 |
18 |
11 |
10.5 |
| STW-12 |
11.1 |
1.8 |
3.2 |
1.5 |
19 |
12 |
11.5 |
| STW-13 |
12 |
1.8 |
3.3 |
20 |
13 |
12.4 |
| STW-14 |
12.9 |
2 |
3.4 |
1.7 |
22 |
14 |
13.4 |
| STW-15 |
13.8 |
2.1 |
3.5 |
23 |
15 |
14.3 |
| STW-16 |
14.7 |
2.2 |
3.6 |
24 |
16 |
15.2 |
| STW-17 |
15.7 |
2.2 |
3.7 |
25 |
17 |
16.2 |
| STW-18 |
16.5 |
1.2 |
2.6 |
3.8 |
26 |
18 |
17 |
1.35 |
| STW-19 |
17.5 |
2.7 |
3.8 |
2 |
27 |
19 |
18 |
| STW-20 |
18.5 |
2.7 |
3.9 |
28 |
20 |
19 |
| STW-21 |
19.5 |
2.7 |
4 |
30 |
21 |
20 |
| STW-22 |
20.5 |
2.7 |
4.1 |
31 |
22 |
21 |
| STW-24 |
22.2 |
3.1 |
4.2 |
33 |
24 |
22.9 |
| STW-25 |
23.2 |
3.1 |
4.3 |
34 |
25 |
23.9 |
| STW-26 |
24.2 |
3.1 |
4.4 |
35 |
26 |
24.9 |
| STW-28 |
25.9 |
1.6(2) |
3.1 |
4.6 |
38 |
28 |
26.6 |
1.75(2) |
| STW-29 |
26.9 |
3.5 |
4.7 |
39 |
29 |
27.6 |
| STW-30 |
27.9 |
3.5 |
4.8 |
40 |
30 |
28.6 |
| STW-32 |
29.6 |
3.5 |
5 |
2.5 |
43 |
32 |
30.3 |
| STW-34 |
31.5 |
4 |
5.3 |
45 |
34 |
32.3 |
| STW-35 |
32.2 |
4 |
5.4 |
46 |
35 |
33 |
| STW-36 |
33.2 |
1.8 |
4 |
5.4 |
47 |
36 |
34 |
1.95 |
2 |
| STW-38 |
35.2 |
4.5 |
5.6 |
50 |
38 |
36 |
| STW-40 |
37 |
4.5 |
5.8 |
53 |
40 |
38 |
| STW-42 |
38.5 |
4.5 |
6.2 |
55 |
42 |
39.5 |
| STW-45 |
41.5 |
4.8 |
6.3 |
58 |
45 |
42.5 |
| STW-48 |
44.5 |
1.8 |
4.8 |
6.5 |
2.5 |
62 |
48 |
45.5 |
1.95 |
5 |
| STW-50 |
45.8 |
2 |
5 |
6.7 |
64 |
50 |
47 |
2.2 |
| STW-52 |
47.8 |
5 |
6.8 |
66 |
52 |
49 |
| STW-55 |
50.8 |
5 |
7 |
70 |
55 |
52 |
| STW-56 |
51.8 |
5 |
7 |
71 |
56 |
53 |
| STW-58 |
53.8 |
5.5 |
7.1 |
73 |
58 |
55 |
| STW-60 |
55.8 |
5.5 |
7.2 |
75 |
60 |
57 |
| STW-62 |
57.8 |
5.5 |
7.2 |
77 |
62 |
59 |
| STW-63 |
58.8 |
5.5 |
7.3 |
78 |
63 |
60 |
| STW-65 |
6038 |
2.5 |
6.4 |
7.4 |
81 |
65 |
62 |
2.7 |
2.5 |
| STW-68 |
63.5 |
6.4 |
7.8 |
84 |
68 |
65 |
| STW-70 |
65.5 |
6.4 |
7.8 |
86 |
70 |
67 |
| STW-72 |
67.5 |
7 |
7.9 |
88 |
72 |
69 |
| STW-75 |
70.5 |
7 |
7.9 |
92 |
75 |
72 |
| STW-78 |
73.5 |
7.4 |
8.1 |
95 |
78 |
75 |
| STW-80 |
74.5 |
7.4 |
8.2 |
97 |
80 |
76.5 |
| STW-82 |
76.5 |
7.4 |
8.3 |
3 |
99 |
82 |
78.5 |
| STW-85 |
79.5 |
3 |
8 |
8.4 |
103 |
85 |
81.5 |
3.2 |
3 |
| STW-88 |
82.5 |
8 |
8.6 |
106 |
88 |
84.5 |
| STW-90 |
84.5 |
8 |
8.7 |
108 |
90 |
86.5 |
| STW-95 |
89.5 |
8.6 |
9.1 |
114 |
95 |
91.5 |
| STW-100 |
94.5 |
9 |
9.5 |
119 |
100 |
96.5 |
| STW-105 |
98 |
4 |
9.5 |
9.8 |
125 |
05 |
101 |
4.2 |
4 |
| STW-110 |
103 |
9.5 |
10 |
131 |
110 |
106 |
| STW-115 |
108 |
9.5 |
10.5 |
137 |
115 |
111 |
| STW-120 |
113 |
10.3 |
10.9 |
143 |
120 |
116 |
| STW-125 |
118 |
10.3 |
11.3 |
3.5 |
148 |
125 |
121 |
|
