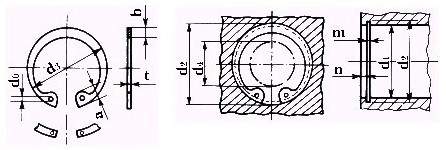

| 호칭번호 |
멈춤링 |
적용하는 구멍(참조) |
| d3 |
t |
b |
a |
d |
d5 |
d1 |
d2 |
m |
n |
| RTW- |
기준
치수 |
기준
치수 |
약 |
약 |
최소 |
기준
치수 |
기준
치수 |
최소 |
| RTW-6* |
6.7 |
0.4 |
0.7 |
1.6 |
0.8 |
2.5 |
6 |
6.25 |
0.5 |
0.5 |
| RTW-7* |
7.7 |
0.8 |
1.7 |
3 |
7 |
7.3 |
| RTW-8* |
8.8 |
0.9 |
1.7 |
3.5 |
8 |
8.4 |
0.6 |
| RTW-9* |
9.8 |
0.6 |
1.1 |
2.2 |
4 |
9 |
9.4 |
0.7 |
| RTW-10 |
10.7 |
1 |
1.8 |
3.1 |
1.2 |
3 |
10 |
10.4 |
1.15 |
1.5 |
| RTW-11 |
11.8 |
1.8 |
3.2 |
4 |
11 |
11.4 |
| RTW-12 |
13 |
1.8 |
3.3 |
1.5 |
5 |
12 |
12.5 |
| RTW-13 |
14.1 |
1.8 |
3.5 |
6 |
13 |
13.6 |
| RTW-14 |
15.1 |
2 |
3.6 |
1.7 |
7 |
14 |
14.6 |
| RTW-15 |
16.2 |
2 |
3.6 |
8 |
15 |
15.7 |
| RTW-16 |
17.3 |
2 |
3.7 |
8 |
16 |
16.8 |
| RTW-17 |
18.3 |
2 |
3.8 |
9 |
17 |
17.8 |
| RTW-18 |
19.5 |
2.5 |
4 |
10 |
18 |
19 |
| RTW-19 |
20.5 |
2.5 |
4 |
2 |
11 |
19 |
20 |
| RTW-20 |
21.5 |
2.5 |
4 |
12 |
20 |
21 |
| RTW-21 |
22.5 |
2.5 |
4.1 |
12 |
21 |
22 |
| RTW-22 |
23.5 |
2.5 |
4.1 |
13 |
22 |
23 |
| RTW-24 |
25.9 |
1.2 |
2.5 |
4.3 |
15 |
24 |
25.2 |
1.35 |
| RTW-25 |
26.9 |
3 |
4.4 |
16 |
25 |
26.2 |
| RTW-26 |
27.9 |
3 |
4.6 |
16 |
26 |
27.2 |
| RTW-28 |
30.1 |
3 |
4.6 |
18 |
28 |
29.4 |
| RTW-30 |
32.1 |
1.6(2) |
3 |
4.7 |
20 |
30 |
31.4 |
| RTW-32 |
34.4 |
3.5 |
5.2 |
2.5 |
21 |
32 |
33.7 |
| RTW-34 |
36.5 |
3.5 |
5.2 |
23 |
34 |
35.7 |
1.75(2) |
2 |
| RTW-35 |
37.8 |
3.5 |
5.2 |
24 |
35 |
37 |
| RTW-36 |
38.8 |
3.5 |
5.2 |
25 |
36 |
38 |
| RTW-37 |
39.8 |
3.5 |
5.2 |
26 |
37 |
39 |
| RTW-38 |
40.8 |
4 |
5.3 |
27 |
38 |
40 |
| RTW-40 |
43.5 |
1.8 |
4 |
5.7 |
29 |
40 |
42.5 |
1.95 |
| RTW-42 |
45.5 |
4 |
5.8 |
30 |
42 |
44.5 |
| RTW-45 |
48.5 |
4.5 |
5.9 |
33 |
45 |
47.5 |
| RTW-47 |
50.5 |
4.5 |
5.1 |
34 |
47 |
49.5 |
| RTW-48 |
51.5 |
1.8 |
4.5 |
6.2 |
2.5 |
35 |
48 |
50.5 |
1.95 |
2 |
| RTW-50 |
54.2 |
2 |
4.5 |
6.5 |
37 |
50 |
53 |
2.2 |
| RTW-52 |
56.2 |
5.1 |
6.5 |
39 |
52 |
55 |
| RTW-55 |
59.2 |
5.1 |
6.5 |
41 |
55 |
58 |
| RTW-56 |
60.2 |
5.1 |
6.6 |
42 |
56 |
59 |
| RTW-58 |
62.2 |
5.1 |
6.8 |
44 |
58 |
61 |
| RTW-60 |
64.2 |
5.5 |
6.8 |
46 |
60 |
63 |
| RTW-62 |
66.2 |
5.5 |
6.9 |
48 |
62 |
65 |
| RTW-63 |
67.2 |
5.5 |
6.9 |
49 |
63 |
66 |
| RTW-65 |
69.2 |
2.5 |
5.5 |
7 |
50 |
65 |
68 |
2.7 |
2.5 |
| RTW-68 |
72.5 |
6 |
7.4 |
53 |
68 |
71 |
| RTW-70 |
74.5 |
6 |
7.4 |
55 |
70 |
73 |
| RTW-72 |
76.5 |
6.6 |
7.4 |
57 |
72 |
75 |
| RTW-75 |
79.5 |
6.6 |
7.8 |
60 |
75 |
78 |
| RTW-78 |
82.5 |
6.6 |
8 |
62 |
78 |
81 |
| RTW-80 |
85.5 |
7 |
8 |
64 |
80 |
83.5 |
| RTW-82 |
87.5 |
7 |
8 |
3 |
66 |
82 |
85.5 |
| RTW-85 |
90.5 |
3 |
7 |
8 |
69 |
85 |
88.5 |
3.2 |
3 |
| RTW-88 |
93.5 |
7.6 |
8.2 |
71 |
88 |
91.5 |
| RTW-90 |
95.5 |
7.6 |
8.3 |
73 |
90 |
93.5 |
| RTW-92 |
97.5 |
8 |
8.3 |
74 |
92 |
95.5 |
| RTW-95 |
100.5 |
8 |
8.5 |
77 |
95 |
98.5 |
| RTW-98 |
103.5 |
8.3 |
8.7 |
80 |
98 |
101.5 |
| RTW-100 |
105.5 |
8.3 |
8.8 |
82 |
100 |
103.5 |
| RTW-102 |
108 |
8.9 |
9 |
83 |
102 |
106 |
4.2 |
4 |
| RTW-105 |
112 |
4 |
8.9 |
9.1 |
86 |
105 |
109 |
| RTW-108 |
115 |
8.9 |
9.5 |
87 |
108 |
112 |
| RTW-110 |
117 |
8.9 |
10.2 |
89 |
110 |
114 |
| RTW-112 |
119 |
8.9 |
10.2 |
90 |
112 |
116 |
| RTW-115 |
122 |
9.5 |
10.2 |
94 |
115 |
119 |
| RTW-120 |
127 |
9.5 |
10.7 |
98 |
120 |
124 |
| RTW-125 |
132 |
10 |
10.7 |
3.5 |
103 |
125 |
129 |
|
